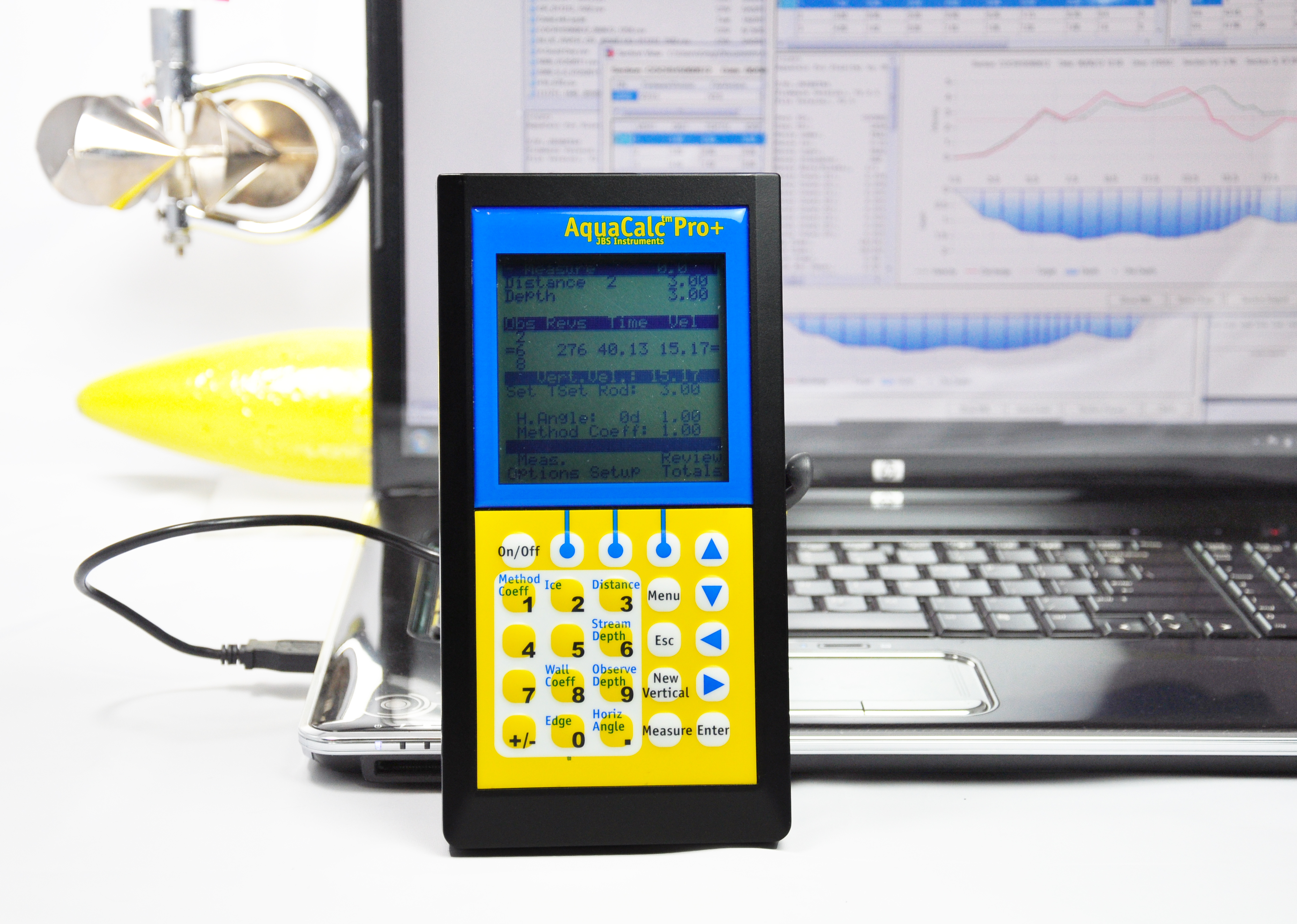

Introducing the AquaCalc Pro Plus!
AquaCalc LLC is pleased to offer an improved version of the
AquaCalc Pro discharge computer: the AquaCalc Pro Plus. All the same features of the the industry standard AquaCalc Pro
Plus:
- A USB connection that allows automated downloading of AquaCalc measurements.
- Rechargeable and field replaceable NiMh AA batteries that charge using the USB connection.
- A battery meter that indicates the battery charge remaining.
- An improved user interface that makes navigation and review easier.
- Automated downloading of measurements using the newly redesigned and improved AquaCalc DataLink program
- A completely new and redesigned RoHs compliant circuit board with additional program space for more features.
- Faster, more accurate stream measurements.
- Automatically
calculates stream discharge
We’ve improved a classic: Easier to use than any AquaCalc before.
The improved user interface allows you to make USGS quality one, two, and three point measurements easily and accurately, quickly review measurement in the field, and automatically download and review your measurements on your computer.
- Eliminates math and transcription errors.
- Saves time in the office.
- Convenient in bad weather.
- Durable construction.
- Table or graph output.
- Compatible with all impulse or “click” type current meters including Performance Results Plus (formerly) Rickly Hydrological Price AA and Pygmy type current meters, Hydrological Services Redback AA current meters, Ott type horizontal axis current meters , and electronic current meters like the Gurley Optical Head current meters. For more information see Using Custom Current Meters here.
- Can also be used with the AquaCalc Digital Pygmy Magnetic Head for the Pygmy current meter.
- Accepts non-standard and custom meter ratings
- Stores 30 complete cross sections, with 99 vertical measurements for each cross section
- a 16 line LCD display
- 8 or more hours of battery life with a battery meter and low battery warning. The NiMh AA rechargeable batteries can be replaced without loss of data
- On-board memory backup

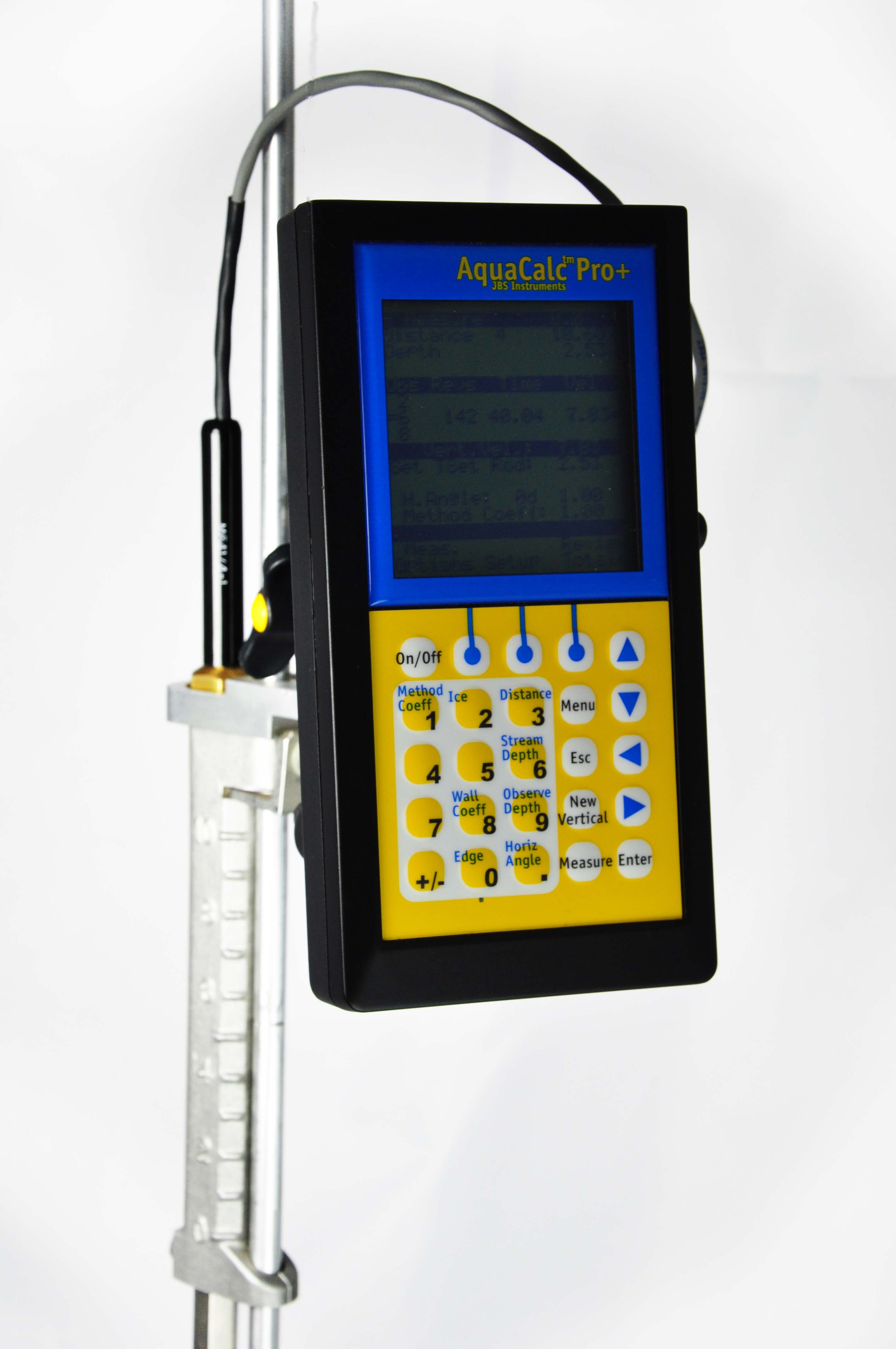

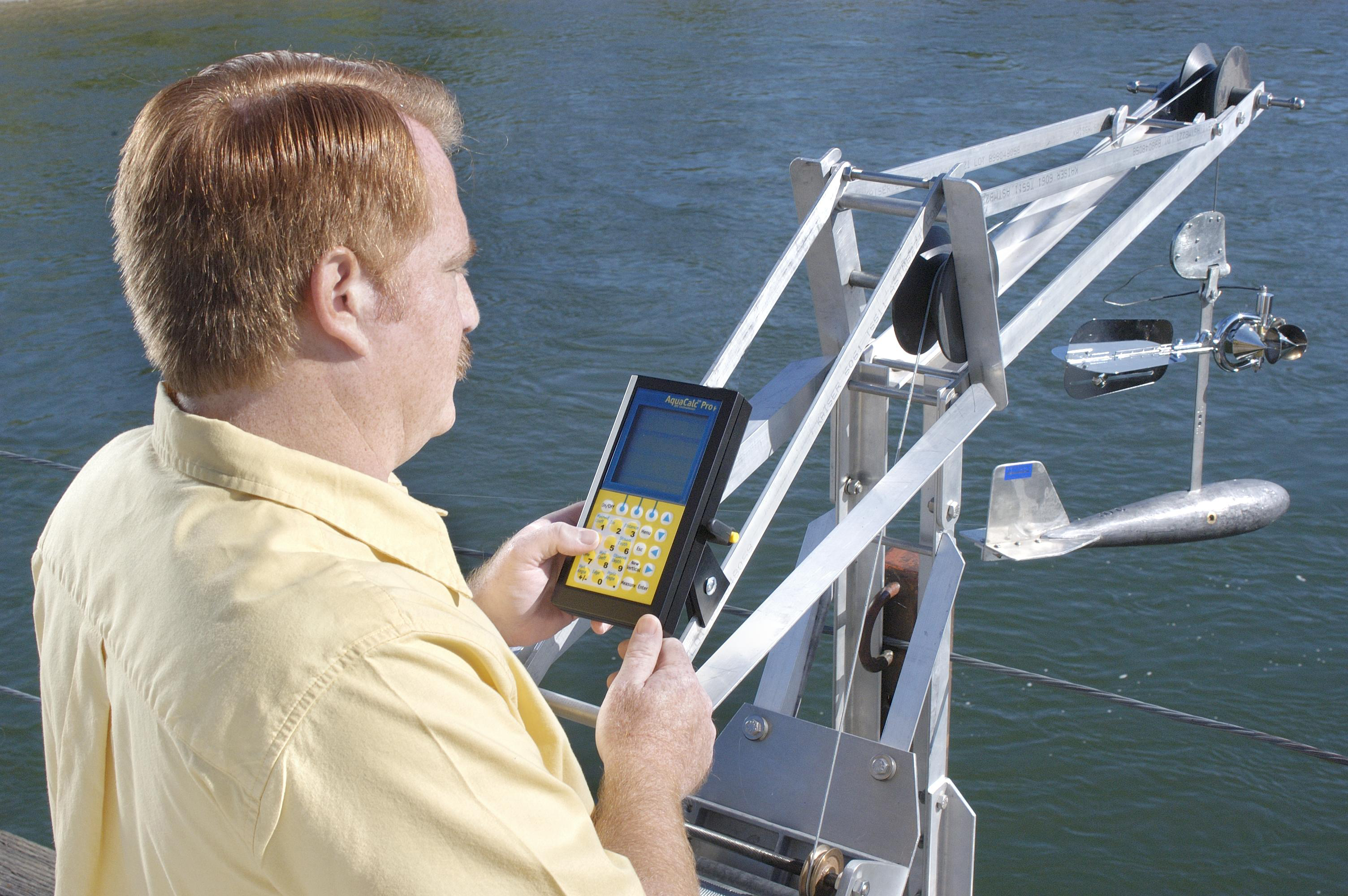

- The Rod-mount makes it easy to attach the AquaCalc to your wading rod or bridge crane.
Features:
The 25 key keypad puts the most used functions at your finger tips. For those of you who still wish to hear your meter “clicks”, the internal speaker will let you hear them without a headset, and can sound a tone when you press a key or when the AquaCalc displays a message.
The user interface has been designed to make taking stream discharge measurements easier. With the larger display it is possible to see up to three observations in a vertical on the same screen, plus measurement settings and messages. Plus a continuous display of estimated instantaneous velocity so that you can see what the stream is doing before you begin your “official” observation.
The menu system, combined with three “soft-keys”, whose functions can be changed as needed, give the user easy access to the AquaCalc’s capabilities.
Hardware design includes a rugged case with full gaskets designed to withstand directed hard spray (international standard for water
resistant of IP65), scratch resistant display lens, integrated USB port with protective cap, and a custom designed mounting bracket.
The AquaCalc’s measurements can be downloaded to a computer using the included AquaCalc DataLink and displayed in graphs and reports. The AquaCalc Excel Analyzer file will allow you to import and edit measurements after they have been downloaded to you computer.
Click here for more pictures of the AquaCalc Pro Plus
AquaCalc Pro Plus USB Drivers
The AquaCalc Pro Plus has a USB connection built in. To use the USB connection on your Windows computer, you will need to install the AquaCalc Pro USB drivers. The AquaCalc Pro Plus USB Drivers are available from our website here.
AquaCalc Pro Plus USB Drivers
The AquaCalc Pro Plus has a USB connection built in. To use the USB connection on your Windows computer, you will need to install the AquaCalc Pro USB drivers. The AquaCalc Pro Plus USB Drivers are available from our website here.
AquaCalc DataLink

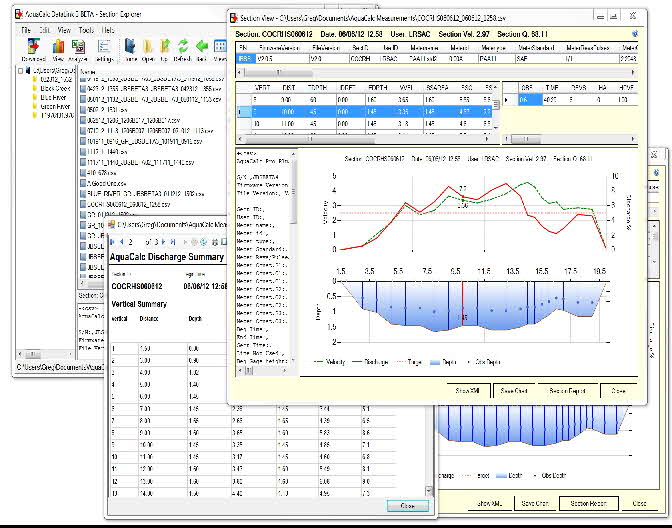

The AquaCalc DataLink program is used to download measurements from your AquaCalc. This new version automates the download of AquaCalc Pro Plus measurements, and can graph your measurement and print reports.
AquaCalc DataLink
The AquaCalc DataLink program is used to download measurements from your AquaCalc. This new version automates the download of AquaCalc Pro Plus measurements, and can graph your measurement and print reports.
AquaCalc: It counts the clicks and more.

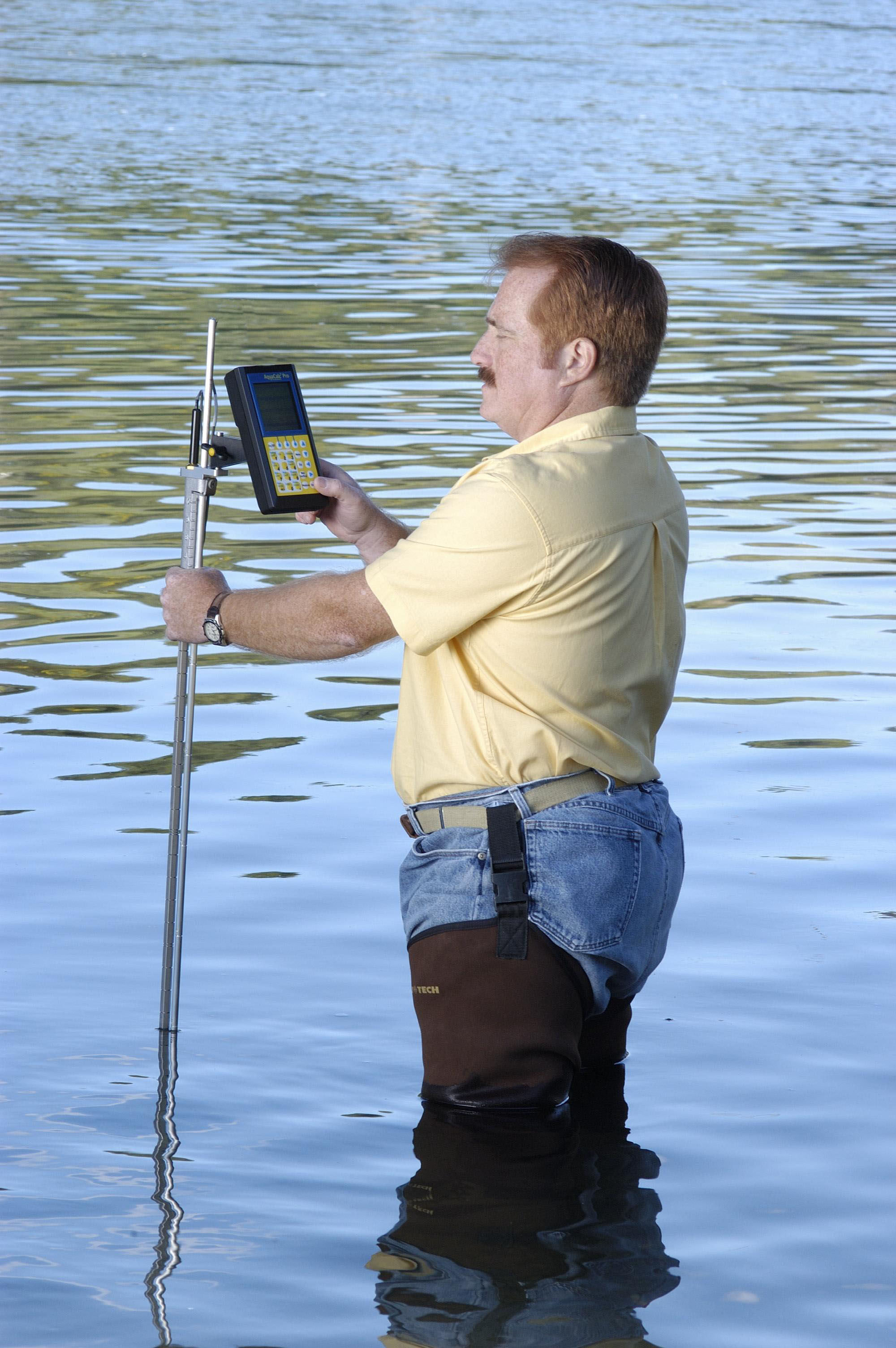

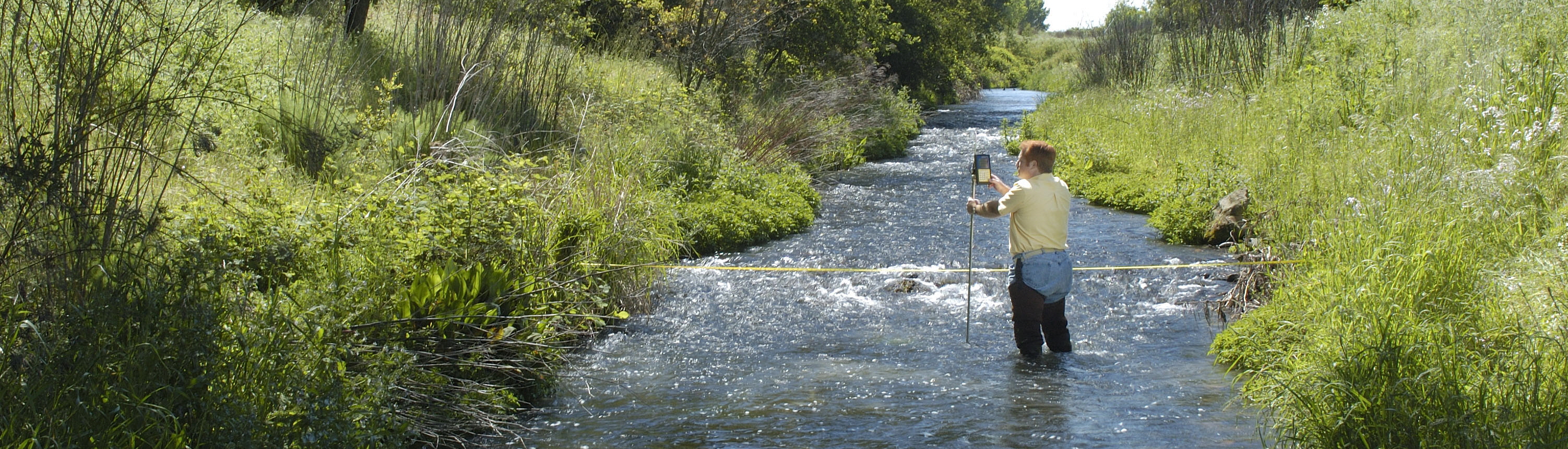

Collecting stream data used to require juggling an armload of gadgets while counting clicks, writing notes, and performing calculations. Not any more.
Now there’s the AquaCalc, a handheld computer that measures, records and calculates data with minimal user input. No more pencil, notepad and current meter table. No more calculator and stopwatch. No more “counting the clicks.”
AquaCalc does it for you - -automatically. You input the depth and distance at each station. AquaCalc measures velocity and elapsed time. Then, AquaCalc calculates total stream discharge and mean velocity. After stream measurement is complete, you can upload the data to a laptop or personal computer. It’s the fastest, easiest, most accurate stream measurement instrument available today.
Faster, more accurate stream measurement.
AquaCalc improves the speed, accuracy and efficiency of your stream measurements. The user inputs the distance and depth. AquaCalc measures revolutions and elapsed time calculating velocity and discharge. When all the stations have been measured, simply press a button and AquaCalc gives you the total discharge and mean velocity. AquaCalc completely eliminates time-consuming hand calculations, saving an average of 20 minutes per cross section. You can save as much as two hours a day - enough time to measure another station.
AquaCalc saves even more time in error detection and re-calculation. With hand calculations, finding and correcting an error can take hours. But with AquaCalc, you can usually find and correct data entry errors in a few minutes.
Eliminates math and transcription errors.
With AquaCalc and accepted measurement procedures, the chance of error is virtually zero. Math errors are eliminated. To help prevent procedural errors, AquaCalc prompts the user with a “flag” when an unusual entry occurs. AquaCalc uploads the data to your laptop or personal computer, so transcription errors are eliminated. The result: highly accurate data with less time wasted finding and correcting errors.
Special features include:
- Add or delete an observation anywhere in the cross section
- Up to 3-point measurements in a vertical (0.2, 0.6, 0.8)
- Ability to perform ice measurements.
- Display of available memory
- Warning flags that identify the incorrect meter, sounding weight
For more information please see our Frequently Asked Questions page.
Saves time in the office.
AquaCalc lets you upload your data to a laptop in the field or your personal computer in the office, eliminating data entry time. And, because there are no math errors, quality control review becomes a much simpler and quicker task.
Convenient in bad weather.
You’ll appreciate the AquaCalc even more in bad weather. No more soggy note paper with hard-to-read notes! AquaCalc is easy to use in all weather conditions. The AquaCAlc Pro Plus case has an international rating of IP-65, which provides protection against dust and direct water spray.
Durable construction.
AquaCalc is manufactured from high-quality materials to withstand the occasional drops, vibrations, pollutants, temperature extremes and humidity variations that occur with normal, everyday use. Its weather-resistant design will stand up to prolonged exposure to sunlight, rain, sleet and snow.
Table or graph output.
AquaCalc output looks similar to the USGS Measurement Notes Back Sheet. The included DataLink software can plot data in graph form, which can help inexperienced users understand the data at a glance.
For more information please see our Frequently Asked Questions page.
- Rod mount: attaches the AquaCalc to a top-set rod to leave your other hand free
Need Accessories or Cables?
We have replacement parts and cables for the AquaCalc line of stream flow computers including the Digital Pygmy Magnetic Head retro fit your old Pygmy Current Meter with a new digital magnetic sensor.
